2013--2016 Cadillac ATS - 2.5L - Elite
This release post is a presentation of the software engineering capabilities of TRIFECTA Performance: TRIFECTA presents a complete powertrain power delivery profile recalibration for the MY2013--2017 Cadillac ATS 2.5L I4 LCV engine and corresponding 6L45 automatic transmission reprogramming. The TRIFECTA Performance Cadillac ATS 2.5L I4 LCV 2.5L I4 LCV MY2013--2017 powertrain calibration is an easy to install software performance recalibration with an EZ Flash cable device that will yield gains of up to +25 ft-lbs @ 3250 RPM and +16 WHP @ 3400 RPM (Peak vs peak gains of up to +13 ft-lbs and +9 WHP) to a completely stock Cadillac ATS 2.5 I4 (LCV) MY2013.
Specifications of the TRIFECTA Performance Cadillac ATS MY2013--2017 2.5 I4 (LCV) MY2013--2017 2.5 I4 (LCV) ECM software reprogramming:
Gains of up to +25 ft-lbs @ 3250 RPM and +16 WHP @ 3400 RPM under the curve (and +13 ft-lbs and +9 WHP peak vs peak on 91 octane) Powertrain calibration has been tested and validated for various environments, such as cold/heat, elevation, and variations in fuel quality Power feels linear and immediately responsive (improved drivability and throttle attentiveness) Retains all GM OE diagnostics and ECM functionality Retains all OE error code reporting and functionality Emissions readiness checks are present; emissions compliant Maintains functionality of ABS and TC systems Knock detection mechanisms and OE engine knock detection sensitivity is retained Return to stock functionality included with EZ Flash cable and software
Specifications of the TRIFECTA Performance MY2013--2017 Cadillac ATS 6L45 6-Speed automatic transmission TCM calibration software reprogramming:
Supplementary 6L45 transmission TCM reprogramming compliments the ECM reprogramming and completes the TRIFECTA Powertrain Calibration: designed to work in unison with the ECM reprogramming for optimized performance Improved shift times in adverse shift patterns Improved shift logic (improved drivability) Does not shorten transmission life or increase cooling requirements Retains all OE diagnostics and TCM functionality Retains all OE error code reporting and functionality Improved fuel economy with improvements made to torque converter slip profiles
Installation Notes:
Estimated installation time of ~20 minutes Premium fuel is recommended for maximum power output, but not required
Additional information and availability:
This powertrain calibration includes a TRIFECTA powertrain calibration file specific to your vehicle and includes an EZ Flash Cable (TFEZ010U) Powertrain calibrations currently exist for North American vehicles only, with more regions to follow The TRIFECTA Advantage Calibration is designed for a 100% stock vehicle. Any aftermarket hardware designed to work on a stock vehicle may work without issue, but there is no official support for it with this calibration.
TRIFECTA Elite:
The TRIFECTA Elite Powertrain Recalibration includes calibration individualization, remote diagnostics, and comprehensive aftermarket hardware software integration support. If you have any modifications which require tune customization, or have special requests, our Elite tier offers unlimited updates for mods/requests for as long as you own the vehicle. There are no extra charges once you choose Elite, and if you have Advantage already, you can simply upgrade to Elite for the difference in price at any time.
Read more...
Need help? Have a question for us?
Contact Us
About 2013--2016 Cadillac ATS - 2.5L - Elite
TRIFECTA presents: Cadillac ATS 2.5L I4 (LCV) 2.5L I4 (LCV) MY2013--2017 Powertrain Calibration Reprogramming
This release post is a presentation of the software engineering capabilities of TRIFECTA Performance: TRIFECTA presents a complete powertrain power delivery profile recalibration for the MY2013--2017 Cadillac ATS 2.5L I4 LCV engine and corresponding 6L45 automatic transmission reprogramming. The TRIFECTA Performance Cadillac ATS 2.5L I4 LCV 2.5L I4 LCV MY2013--2017 powertrain calibration is an easy to install software performance recalibration with an EZ Flash cable device that will yield gains of up to +25 ft-lbs @ 3250 RPM and +16 WHP @ 3400 RPM (Peak vs peak gains of up to +13 ft-lbs and +9 WHP) to a completely stock Cadillac ATS 2.5 I4 (LCV) MY2013.
Specifications of the TRIFECTA Performance Cadillac ATS MY2013--2017 2.5 I4 (LCV) MY2013--2017 2.5 I4 (LCV) ECM software reprogramming:
- Gains of up to +25 ft-lbs @ 3250 RPM and +16 WHP @ 3400 RPM under the curve (and +13 ft-lbs and +9 WHP peak vs peak on 91 octane)
- Powertrain calibration has been tested and validated for various environments, such as cold/heat, elevation, and variations in fuel quality
- Power feels linear and immediately responsive (improved drivability and throttle attentiveness)
- Retains all GM OE diagnostics and ECM functionality
- Retains all OE error code reporting and functionality
- Emissions readiness checks are present; emissions compliant
- Maintains functionality of ABS and TC systems
- Knock detection mechanisms and OE engine knock detection sensitivity is retained
- Return to stock functionality included with EZ Flash cable and software
Specifications of the TRIFECTA Performance MY2013--2017 Cadillac ATS 6L45 6-Speed automatic transmission TCM calibration software reprogramming:
- Supplementary 6L45 transmission TCM reprogramming compliments the ECM reprogramming and completes the TRIFECTA Powertrain Calibration: designed to work in unison with the ECM reprogramming for optimized performance
- Improved shift times in adverse shift patterns
- Improved shift logic (improved drivability)
- Does not shorten transmission life or increase cooling requirements
- Retains all OE diagnostics and TCM functionality
- Retains all OE error code reporting and functionality
- Improved fuel economy with improvements made to torque converter slip profiles
Installation Notes:
- Estimated installation time of ~20 minutes
-
Premium fuel is recommended for maximum power output, but not required
Additional information and availability:

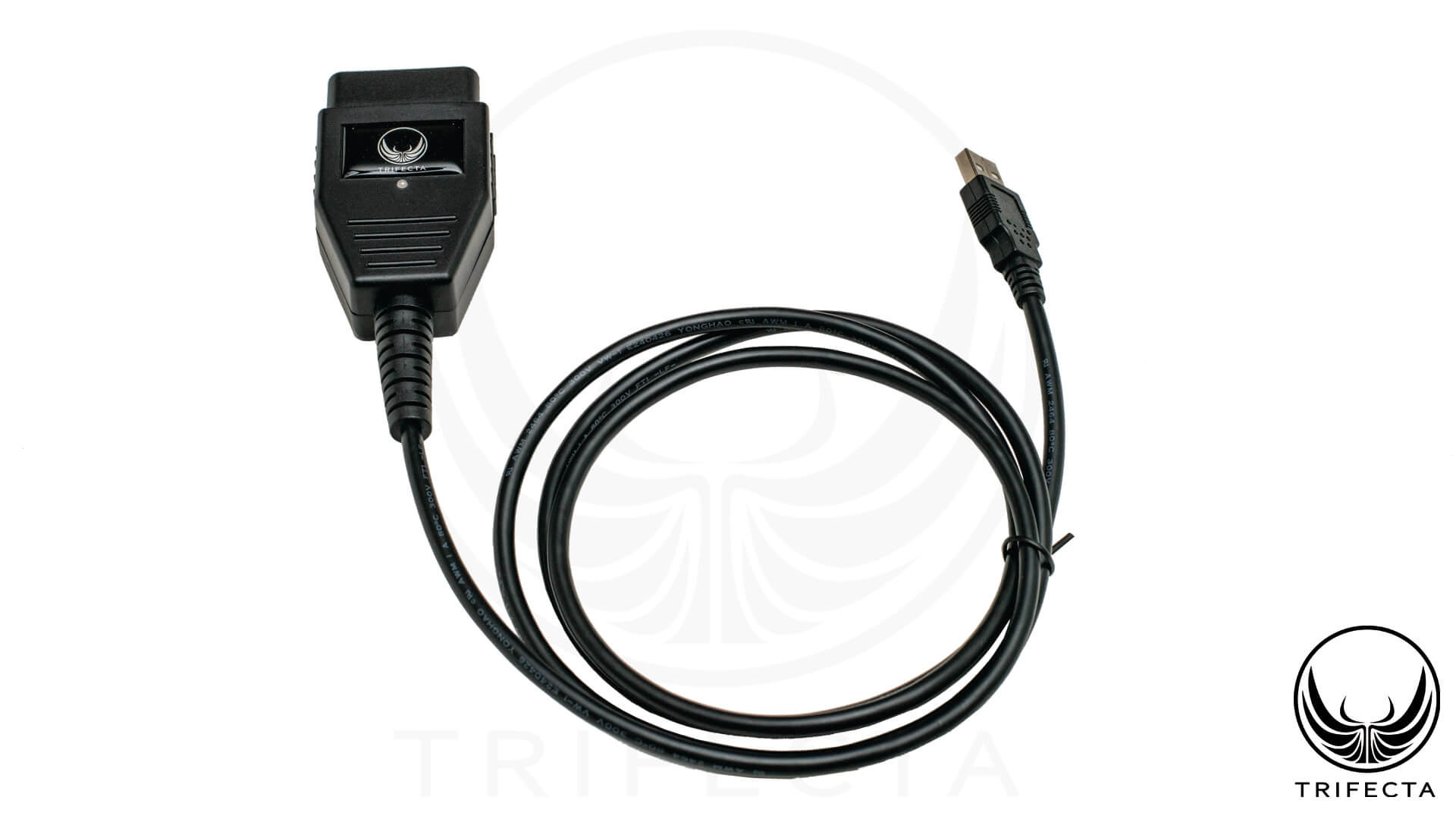

- This powertrain calibration includes a TRIFECTA powertrain calibration file specific to your vehicle and includes an EZ Flash Cable (TFEZ010U)
- Powertrain calibrations currently exist for North American vehicles only, with more regions to follow
- The TRIFECTA Advantage Calibration is designed for a 100% stock vehicle. Any aftermarket hardware designed to work on a stock vehicle may work without issue, but there is no official support for it with this calibration.
TRIFECTA Elite:
The TRIFECTA Elite Powertrain Recalibration includes calibration individualization, remote diagnostics, and comprehensive aftermarket hardware software integration support. If you have any modifications which require tune customization, or have special requests, our Elite tier offers unlimited updates for mods/requests for as long as you own the vehicle. There are no extra charges once you choose Elite, and if you have Advantage already, you can simply upgrade to Elite for the difference in price at any time.
